机房空调水冷U/OD

 提示:点击图片可以放大

D型双冷源机型,可通过空气/氟盘管(直接膨胀制冷)或空气/冷冻水盘管将室内空气冷却,冷凝器为室外空冷冷凝器。

The D type dual fluid models through the air/fluorine coil (direct expansion refrigeration) or air/frozen water coil is used for indoor cooling. The condenser is the outdoor air cooling condenser.

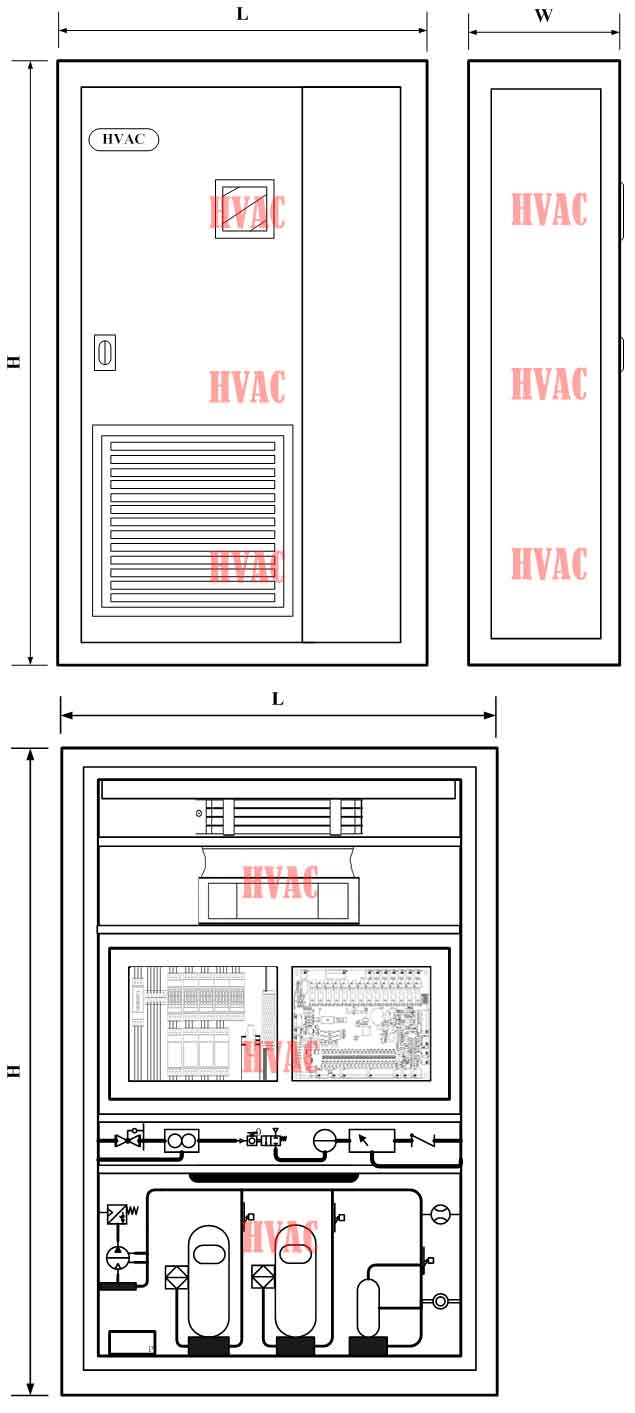

This chart is for reference only, the new design of components and structures for the unit will change depending on the actual situation.

此工程图仅供参考,新机型所使用的元件及机组内部的设计会根据实际状况而有所变动。
